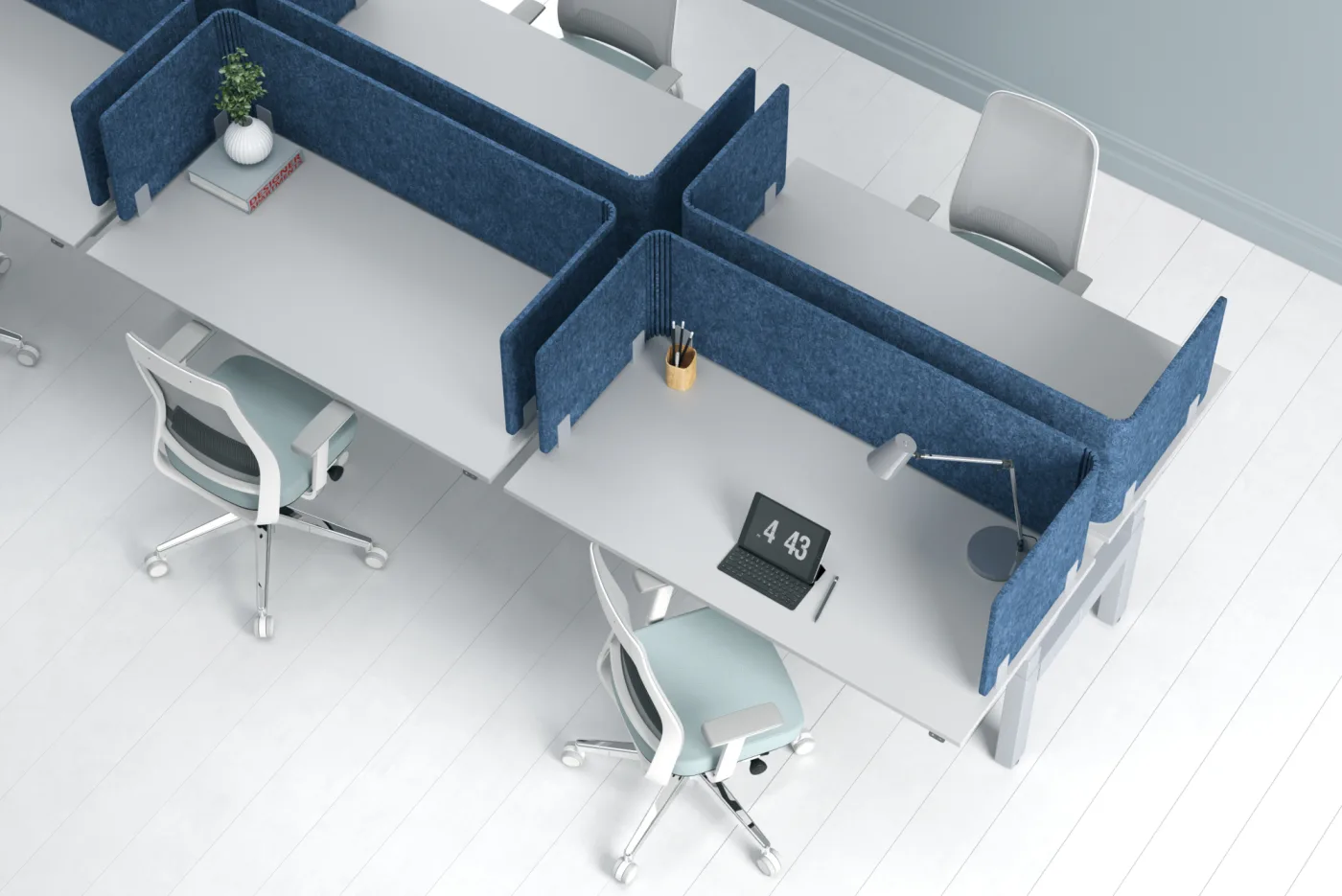

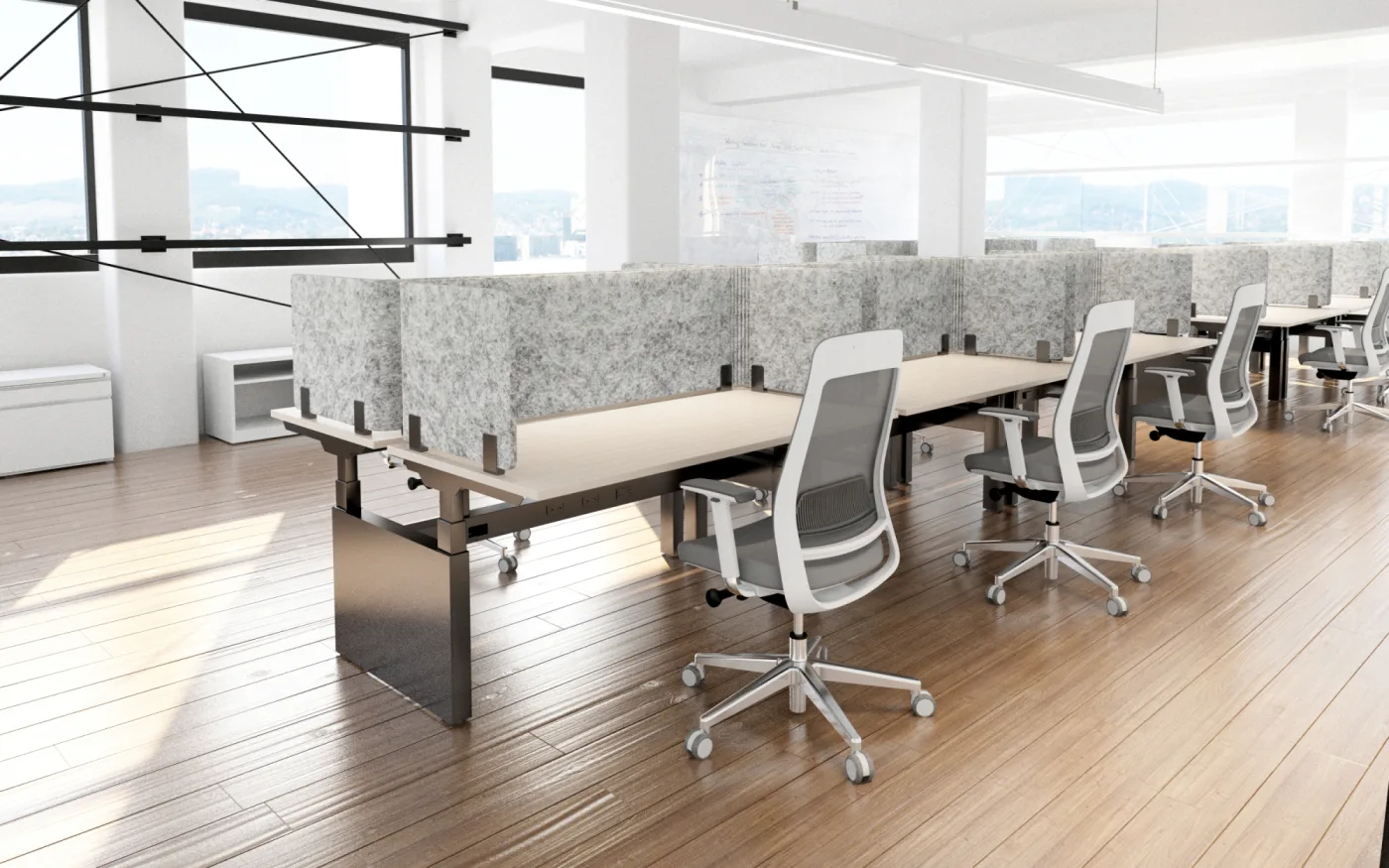

Kinex gives the option of either fixed height or height adjustability with 2- or 3-stage legs. With integrated power and data, single and double runs, Kinex gives more options for your open plan environments.

  • Integrated height adjustability and power/data

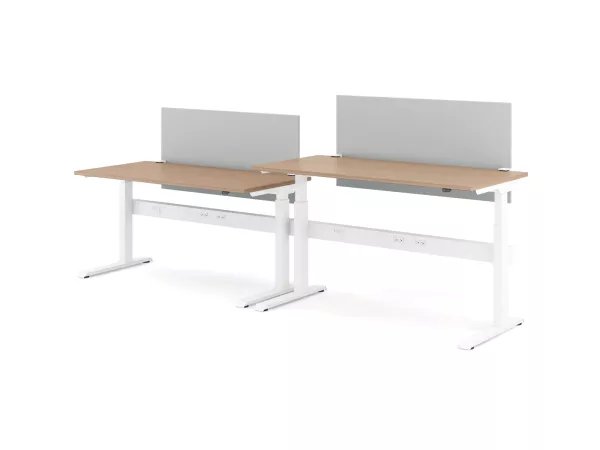

  • 3 Leg options, including 1-stage (fixed height), 2-stage and 3-stage legs with anti-collision functionality

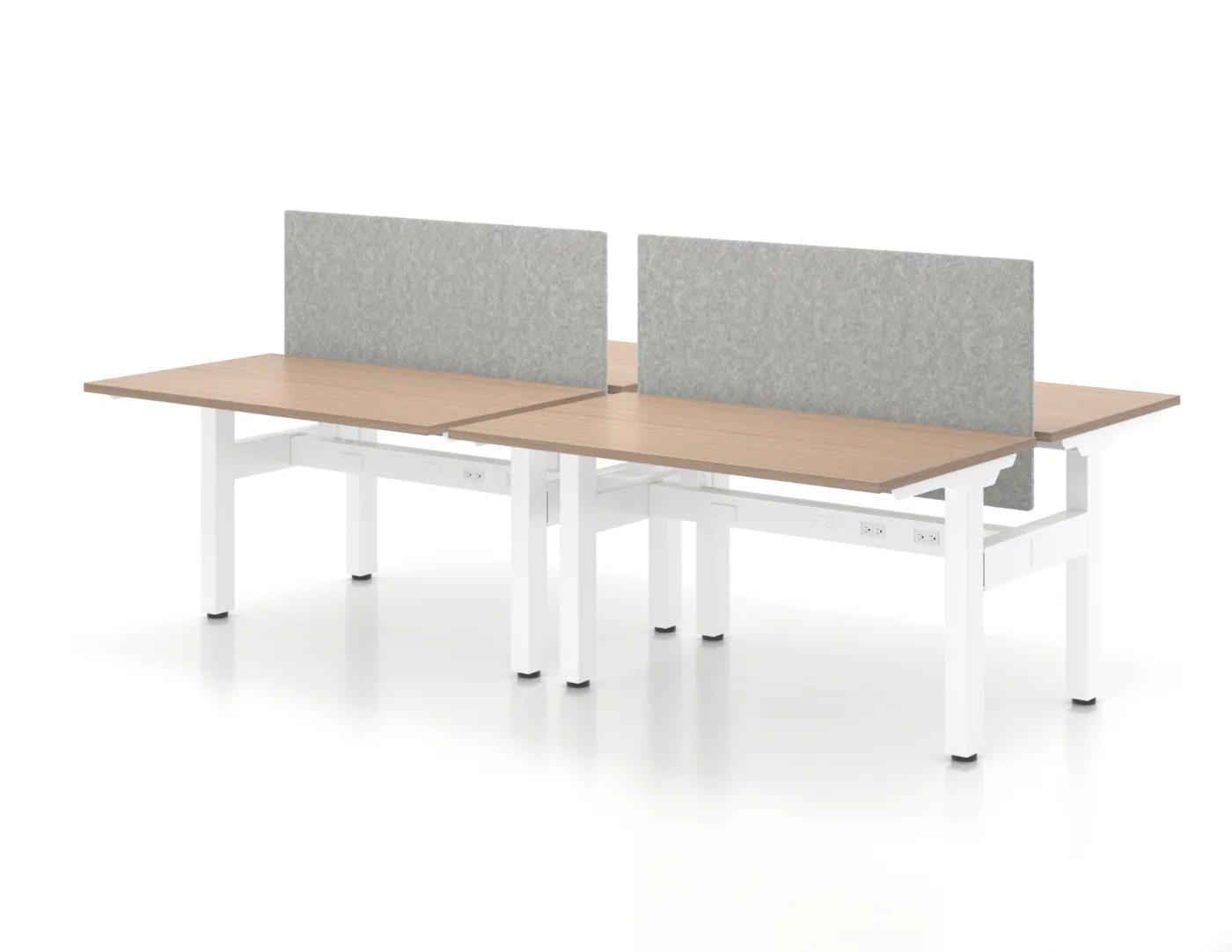

  • Specify as single or double run
  • Soft cable management with 3 duplex option
  • Standard up/down controls or 4-memory preset upgrade
  • Privacy End Panels
  • C-Leg Design


Handset Up/Down (standard) or upgrade to push button with 4 programmable settings
Safety Anti-collision
Foot Length 22” and 28” (available for 24” and 30” deep worksurfaces)

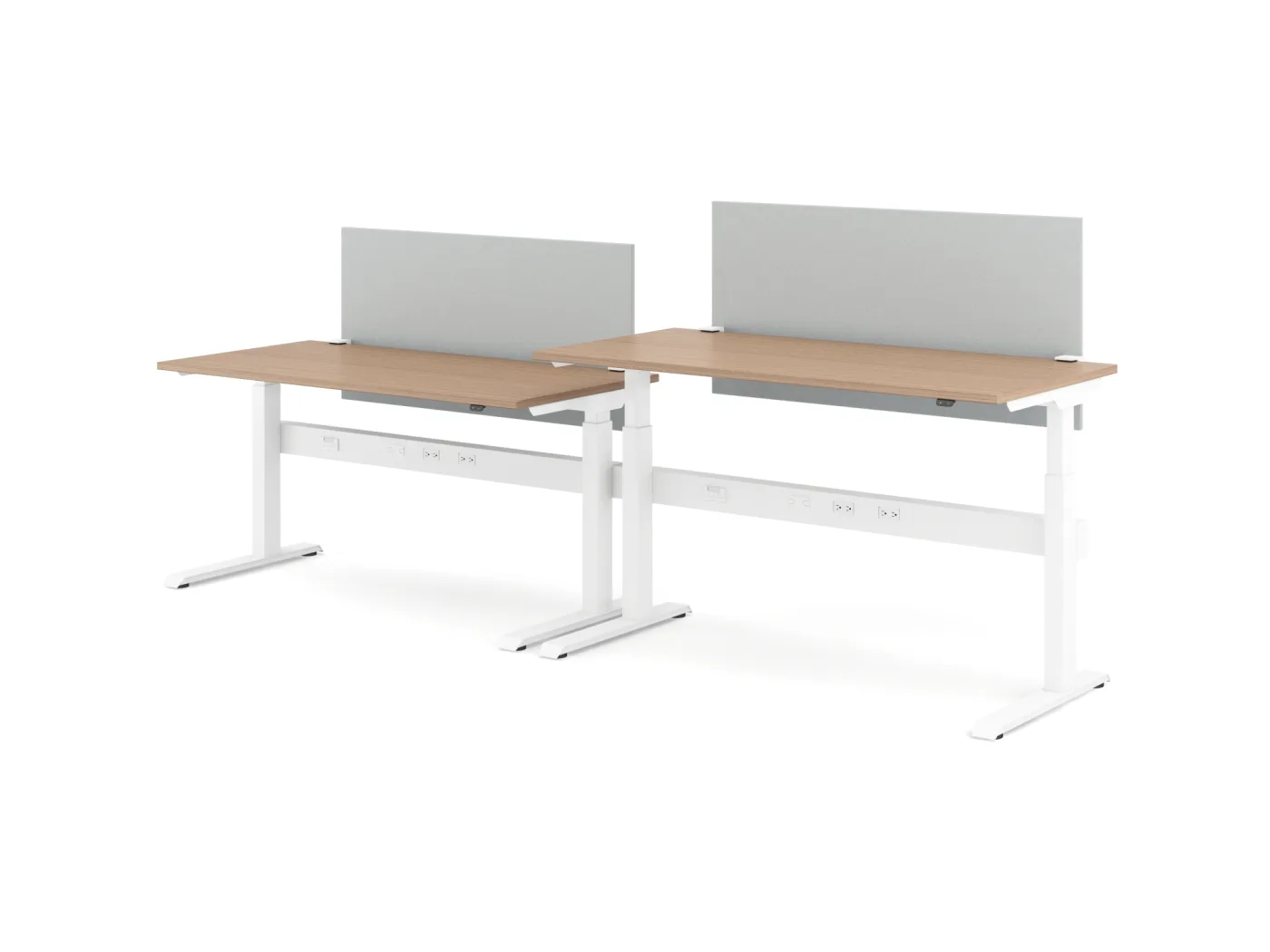

Leg Stage Single/fixed height, 2- or 3-stage
Leg Diameter 3.14” x 2.3”
Height range (excluding top) 3-Stage : 22” to 48”
2-Stage : 27” to 47”

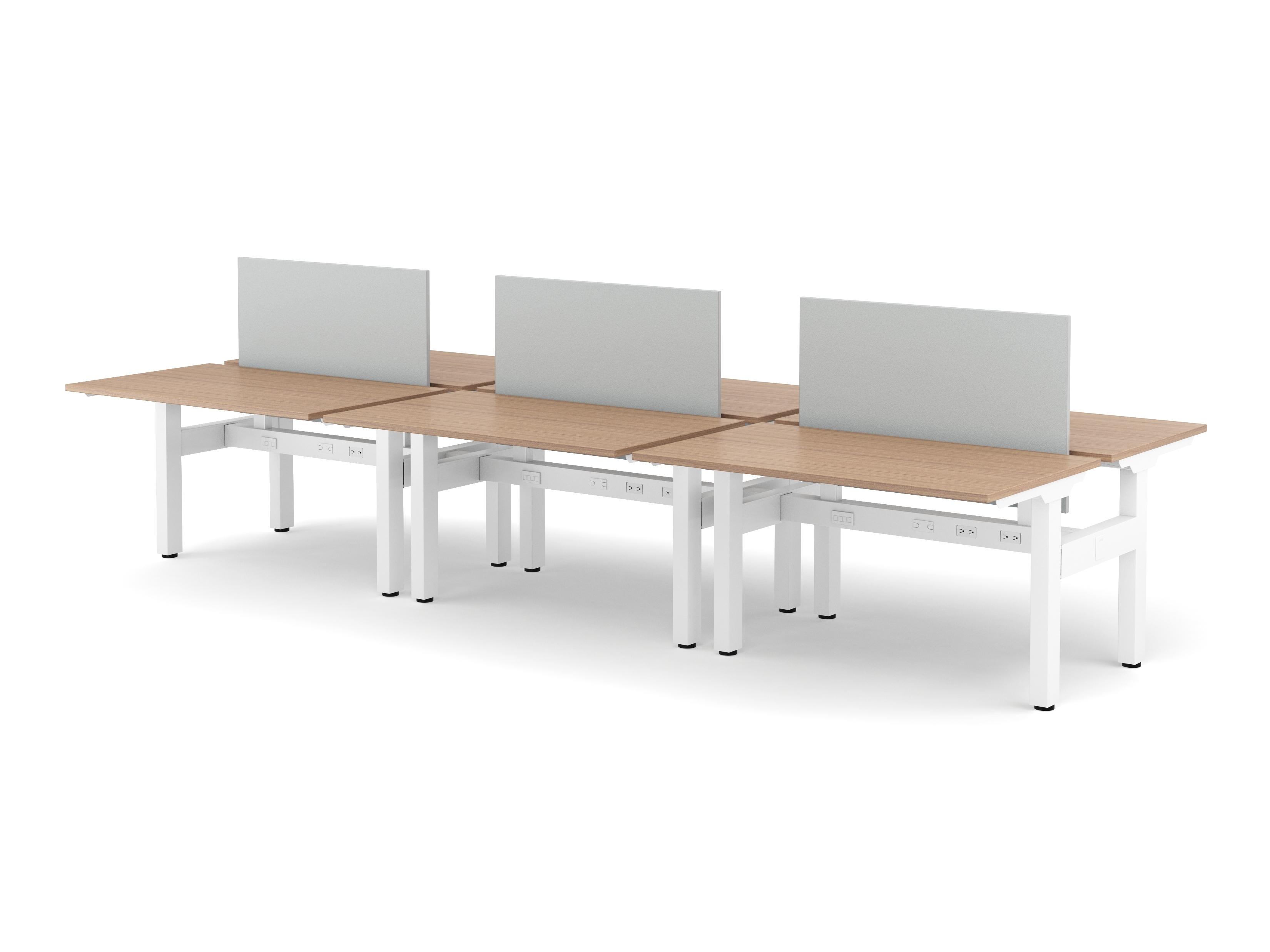

Fixed : 27”
Frame width expansion 47.2" - 48"
53.1" - 54"
59.1" - 60"
65.1" - 66"
71.1" - 72"
Worksurface widths 48", 54", 60", 66", 72"
Worksurface depths 24” and 30”
Max lifting capacity 265 lbs
Gauge of Steel 2mm
Speed 30mm/s
Active Consumption 2-stage legs: 0.2W / 400 W
3-stage legs: 0.2W / 500 W
Standby Consumption .2W
Finishes Platinum, White and Black
Total Stroke 0mm/500mm/650mm
UL UL962
Certifications ANSI/BIFMA X5.5-2014
Indoor Advantage Gold™
